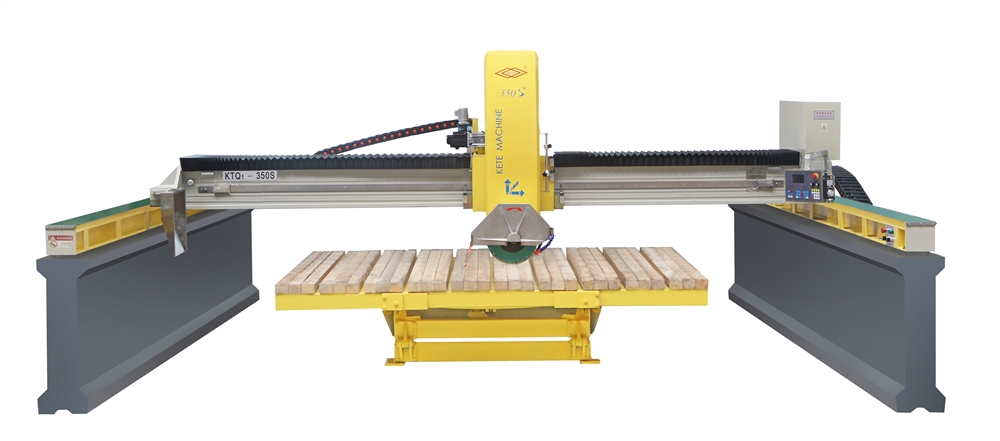

 KTQ1-350S BRIDGE AUTOMATIC CUTTING / SAWING MACHINE

   This Model's girder adopts precise linear guide, servo control and electronic handwheel. It is faster in cutter movement and position controlled by pulse. All the sound performance include but not limited to cutting speed, accuracy, stablity, easy operated Human Machine Interface make KTQ1-350S a good choice for fine decoration work.

TECHNOLOGY SPECIFICATIONS

Maximum Diameter of Saw Blade

Φ350~Φ500mm

Dimensions of Worktable(L×B)

3200×2000mm

Maximum Cutting Size

3200×2000mm

Maximum Length of Rip Cutting

3200mm

Maximum Lifting Travel of Cutter

240mm

Power of Main Motor

15kw

Obliquity of worktable

0~85°

Rotating Angle of  Worktable

0~360°(0、45、90、180、270°)

Cutting Thickness

0~150mm

Machine Dimensions (L×B×H)

6000*4500*2700mm

Gross Weight

5000kgs
